Angular contact ball bearing/Double row angular contact ball bearing

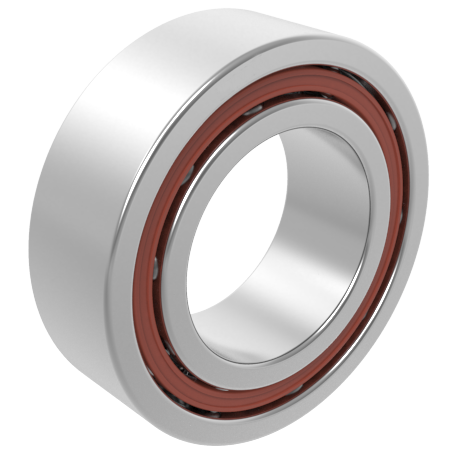

Special double row angular contact ball 100-280mm_150BDZ2201E4

Return to List

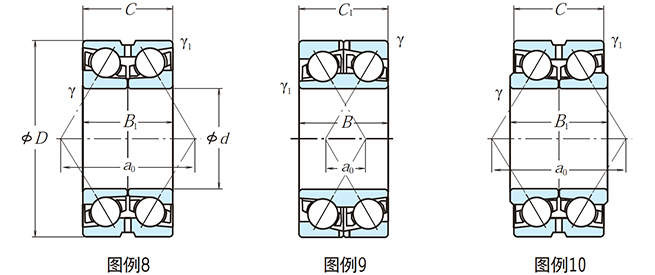

External dimensions（mm)

d	150
D	225
B，B1	73
C，C1	73
γ(minimum)	2.1
γ₁(minimum)	2.1

Rated load(KN)

C_r	199
C_or	277

Rated load{kgf}

C_r	20300
C_or	28200

Bearing code

150BDZ2201E4

legendcode

Location of distance(mm)

A₀

193.8

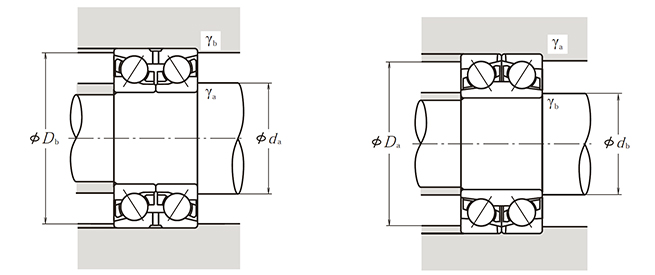

Installation size(mm)

d_ad_b	169
d_ad_b	208
γ_a（maximum）	2
γ_b(maximum）	2

weight(kg)

(refer to)

10.2

describe

150BDZ2201E4 Bearings are mainly used in industries such as construction machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electricity, and railways
